CR-300-RH Brochure

Spectroradiometer / Spectrophotometer

Features at a glance

Compact & Rugged

Constructed using machined aluminium and stainless steel and weighs only 2.5 pounds (1.134 kg).

Spectral Bandwidth & Accuracy

Visbile spectrum (380 - 780 nm) with a
  spectral bandwidth of 2 nm
  spectral resolution of 0.8 nm/pixel
  spectral accuracy of ± 0.3 nm

Custom Objective Lenses

The objective lens but can be customized when ordering. The 50 mm lens is the standard option (available at order time: 60 mm, 75 mm, 100 mm).

Detachable View Finders

Designed for View Finders that are easily detachable and replaceble from the instrument's main body.

Dynamic Range

Luminance range of 0.05 Nits to 230,000 Nits (0.015 fL to 68,000 fL) (sensitivities measured for 10:1 signal to noise (RMS))

Designed for PERFORMANCE

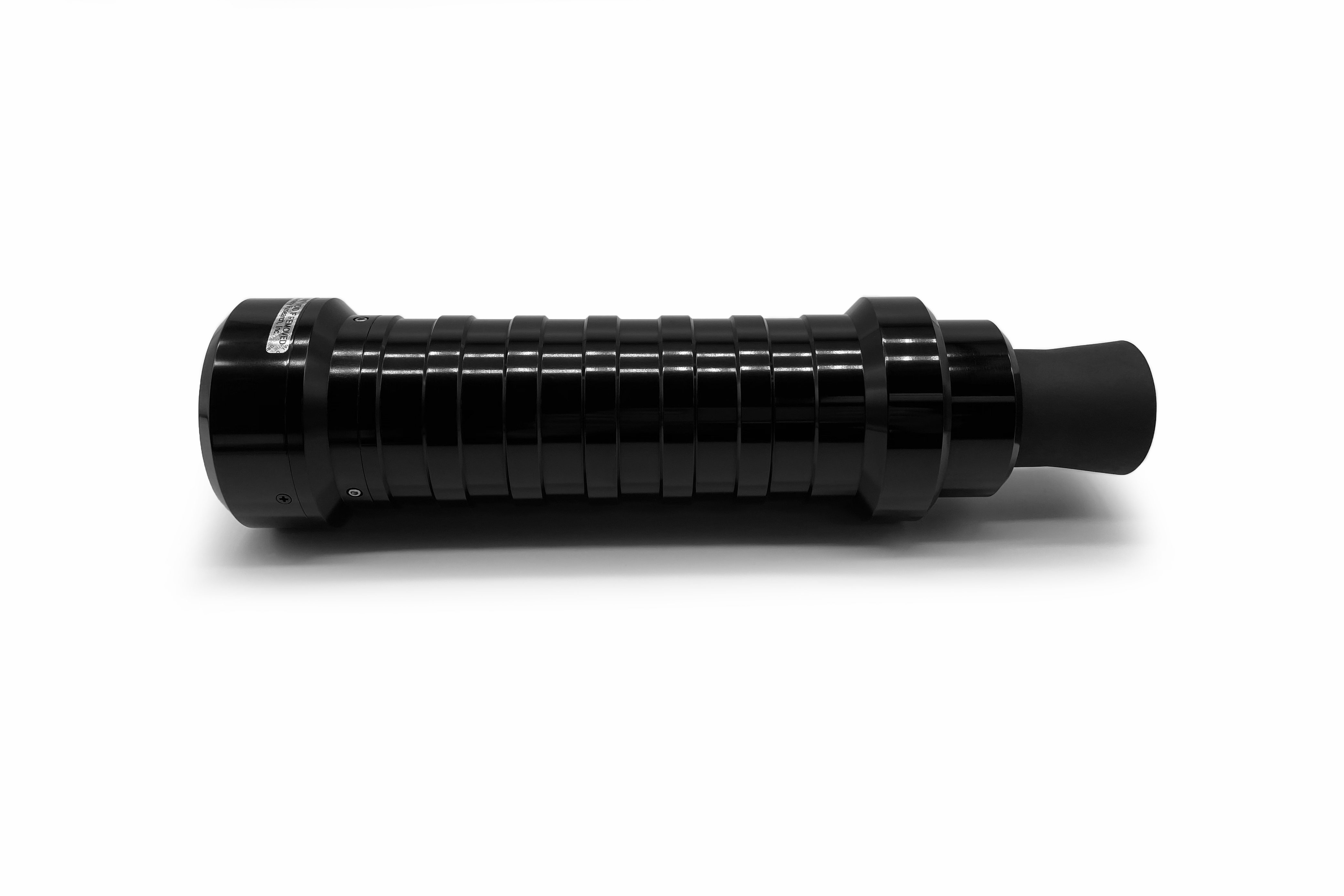

The ruggedly constructed housing of the CR-300-RH is made of machined aluminium and stainless steel, and can withstand high acceleration rates for the most demanding motion positioning systems and environments. All optical components are fixed to ensure that no optical misalignments occur due to vibration, shock or high acceleration/ deceleration rates.

It weighs only 1.0 pound (0.45 kg), and it is the perfect tool for display inspection and calibration and for mounting on fast moving XYZ tables. Its small size and shape allows for several CR-300-RHs to be mounted in the same motion control system and the simultaneous measurement of several spots in the same display.

Versatile INTERFACE options

The CR-300-RH is a USB 2.0 compatible device, remotely controlled by the host software from any personal computer, laptop or net book. As an option, the CR-300-RH can also be controlled by an Ethernet 10BASET/100BASE-TX IEEE-802.3 compliant connection or a RS-232 port.

Optional EXTERNAL TRIGGER Port

The CR-300-RH can be equipped with an optional External Trigger Port which enables remote measurement activation from either a push button, a peripheral device, or by hardware trigger signals to measure strobes/pulsed lights, and start/stop signals. This option is ideal for fast temporal events that need to be precisely synchronized for measurement or data capture.

APPLICATIONS

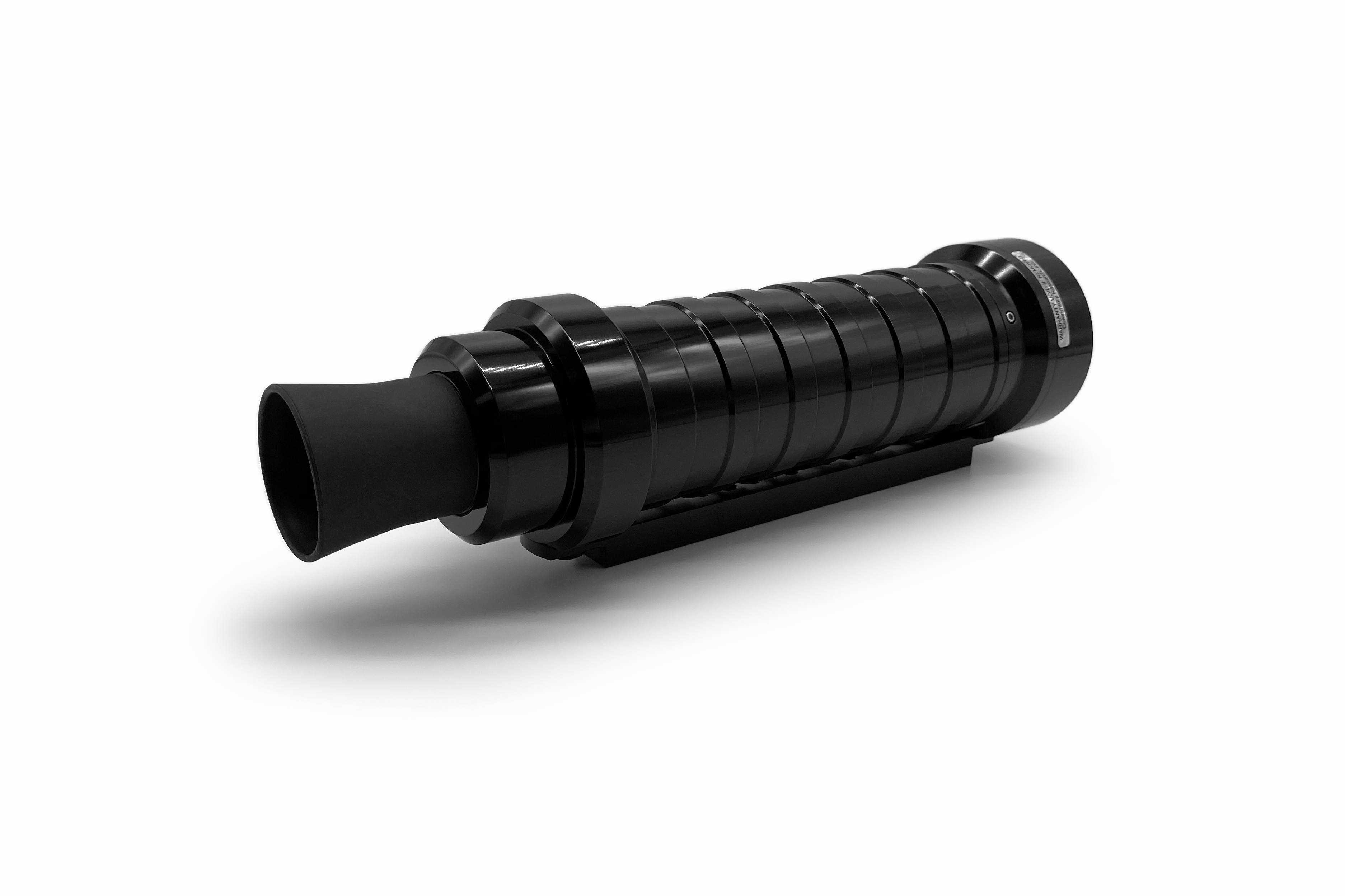

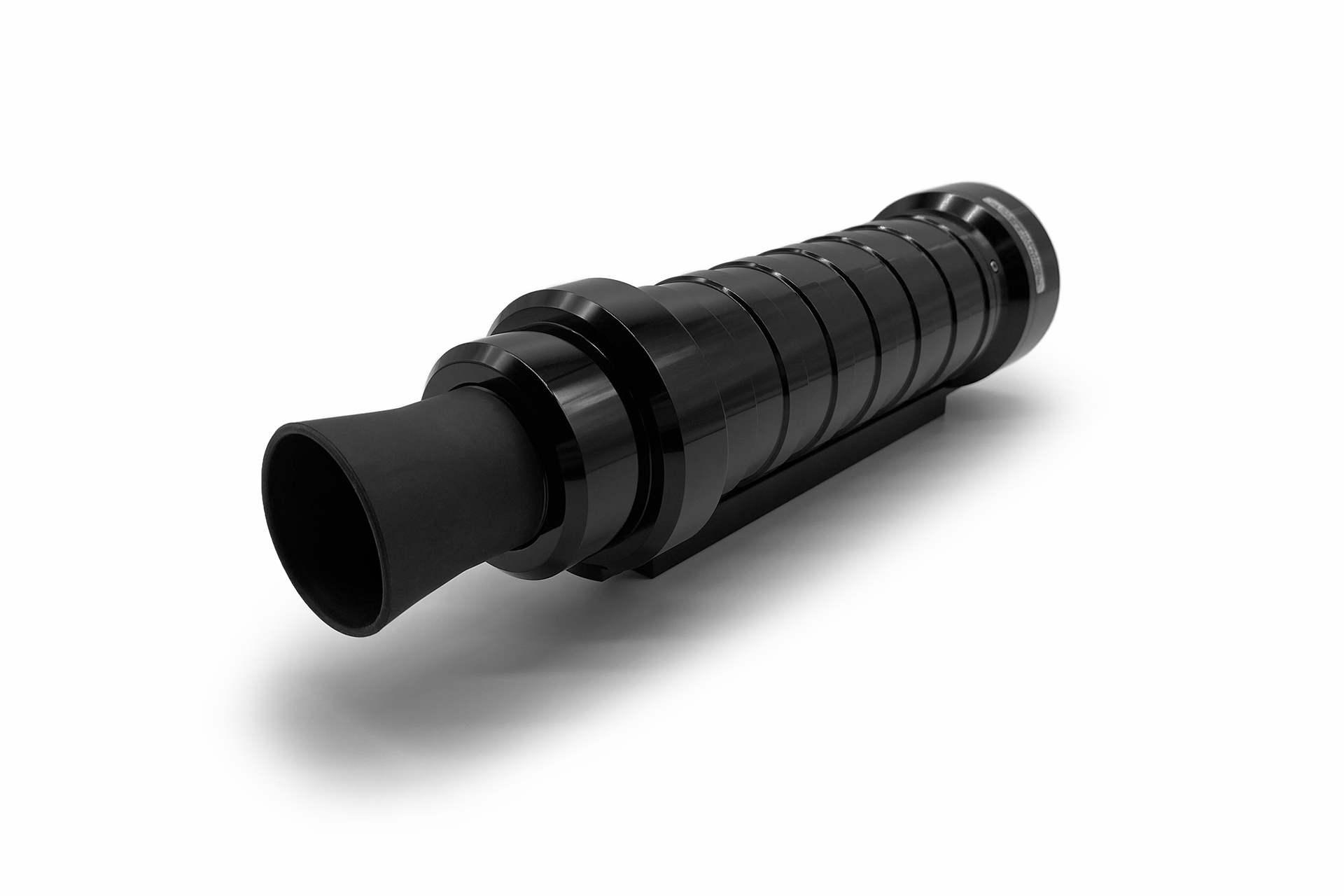

The CR-300-RH was designed specifically for the professional calibrator. It provides a large spot size on contact measurements and a small divergence angle that keeps the measurement spot size within desired dimensions for display panels and projectors calibrations. The rubber hood allows to safely position the meter against the screen providing an excellent shield for ambient light.

Custom COLOR MATCHING FUNCTIONS

Future proof your CR-300-RH with additional custom color matching functions.

The CR-300-RH allows uploading up to three sets of custom CMF’s. This “custom” CMF’s can be alternate standards proposed by different organizations, such us Judd-Voss 1978 or custom CMF’s a researcher may be working on.

And lastly, Powerful application.

The CRIApp application is a streamlined, cross-platform, user-centric application designed to perform all colorimetric - based analysis. It provides a familiar and consistent workspace no matter which platform you are in. The CR-300-RH comes standard with a built-in, easy-to-learn command interpreter, for users to quickly create their own dedicated software to perform specific measurement tasks or for inclusion in an Automated Test Environment.

In addition, a fully documented communication language with numerous real-world, sample templates are included as starting points for customers to build their own software tools using any of the current development environments.

Calibration

All our instruments are calibrated using NIST traceable calibration standards at a color temperature of 2856 Kelvins.

This is a standard calibration method used by most spectroradiometer manufacturers. In addition to the NIST traceable calibration standards we take pride in having developed proprietary Calibration and Quality Assurance processes that require a laboratory grade scanning double monochromator and high accuracy filters of known transmittance and chromaticity.

Essentially, no other spectroradiometers are used during manufacturing and Q.A. because none of them are as accurate as a laboratory grade scanning double monochromator.

The CR-300-RH, when compared with most of the high end spectroradiometers in the market, has been found to be on par or to exceed in accuracy and performance.

The Colorimeter Utility is an accompanying tool that aids in updating, preserving and recovering the state of the instrument.

Options

Legend
  • Included standard with meter
  • Additional accessory (optional)
  • Must be calibrated with the meter

Specifications

Detector CMOS image sensor, 512 pixels
Spectral Range 380 - 780 nm
Spectral Bandwidth 2.0 nm
Spectral Accuracy ± 0.3 nm
Spectral Resolution 0.8 nm / pixel
Luminance Range 0.05 Nits to 230,000 Nits (0.015 fL to 68,000 fL)
Luminance Accuracy ±2 %Ω
Luminance Repeatability ≤1%Ω
Chromaticity Accuracy ± 0.0015 x, yΩ
Chromaticity Repeatability 0.0005 x, yΩ
Polarization Error ≤ 0.5 %
Digital Resolution 16 bits
Objective Lens 50 mm*, 60 mm, 75 mm, 100 mm
Custom Synchronization 10 - 10000 Hz
Exposure Time Range 0.04 to 30 seconds
Power Requirements 5V, 120 mA (600 mW) via USB 2.0
Interface USB 2.0, Ethernet, RS-232
Weight / Mass 2.5 pound (1.134 kg)
Note:
  • When Custom Synchronization is selected, the user is required to enter the refresh rate or the on/off frequency of the device he is measuring
  • All the above measured with a NIST traceable 2856 °K light source.
  • Luminance Range, Accuracy and Repeatability and Chromaticity Accuracy and Repeatability are measured with a NIST- traceable 2856 °K light source.
  • SeSensitivities measured for 10:1 signal to noise (RMS).
  • Ω Measured with luminance level of 1.7 Nits (0.5 fL).
  • *50mm lens is the standard lens included wih the instrument. All others are special order.
All specifications are subject to change.

Measurement spot size

Working Distance (mm) 50 mm Lens 60 mm Lens 75 mm Lens 100 mm Lens
0 20.0 24.0 30.0 40.0
100 22.6 26.2 31.7 41.3
200 25.2 28.3 33.5 42.6
500 33.0 34.84 38.7 46.5
1000 46.0 45.7 47.3 53.0
2000 72.0 67.3 64.7 66.0
3000 98.0 89.0 82.0 79.0
20 + 0.026x 24 + 0.02166x 30 + 0.01733x 40 + 0.013x
All specifications are subject to change.
